UniFormation S10 Launches on Kickstarter with Integrated Resin Workflow

Integrated Workflow for Resin Printers

The S10 automates the transfer of prints between stages, eliminating the need for manual handling of resin-coated build plates. After printing, the build platform rotates and tilts to drain excess resin, then moves to a washing compartment for two cleaning cycles using the same solution. This process ensures that models are thoroughly cleaned without the risk of contamination or damage. The automation reduces the time and effort required for post-processing, allowing users to focus on other aspects of their projects.

The washing process includes a 9-liter tank where the platform moves to remove residual resin. After washing, the models are dried using controlled warm air at 35–45°C. This reduces exposure to chemicals and streamlines the workflow for users. The drying system is designed to be gentle, preventing damage to delicate prints and ensuring that models are ready for final curing. This feature is especially beneficial for users working with intricate or fragile designs.

Automated Post-Processing Features

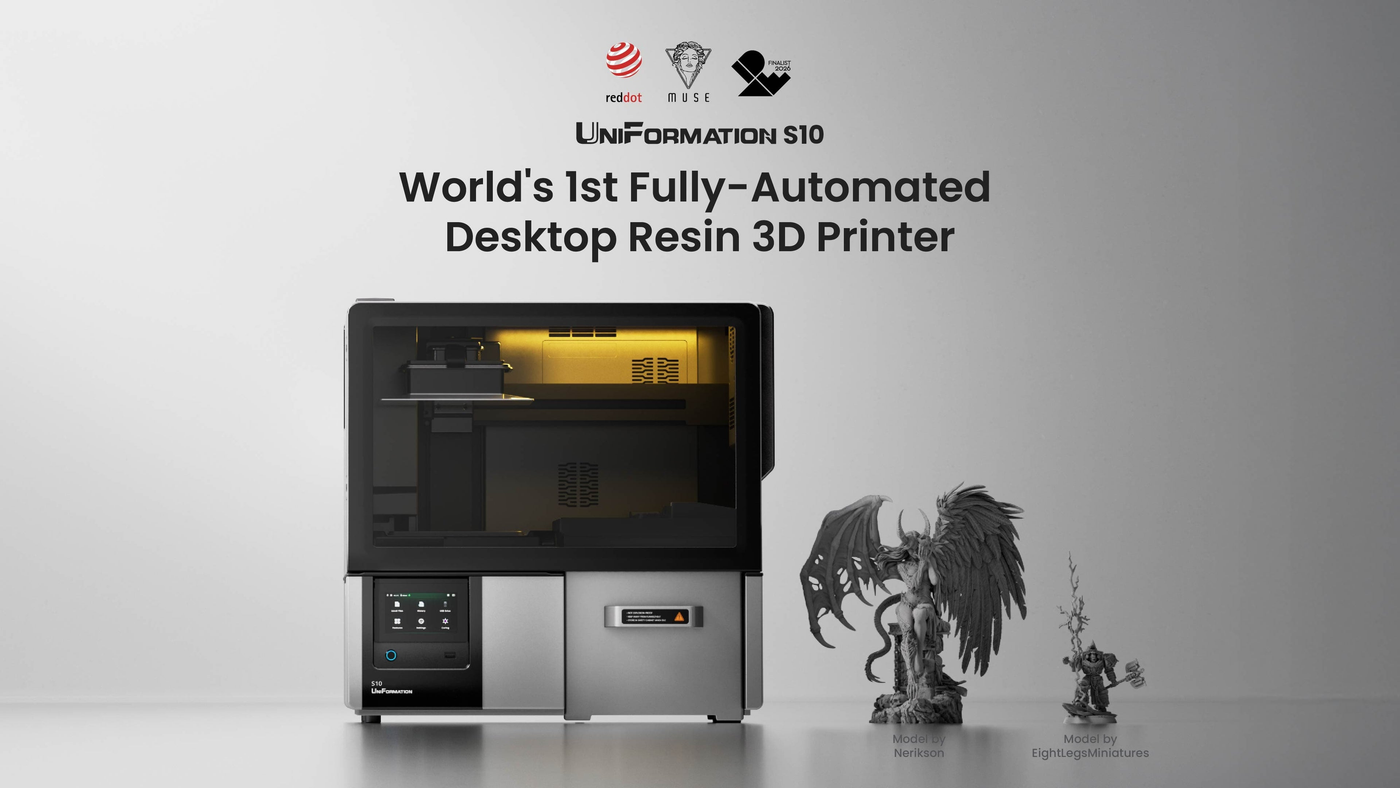

UniFormation claims the S10 is the first fully automated desktop resin 3D printer. It integrates printing, washing, and drying, aiming to reduce the complexity of resin-based projects for hobbyists and small studios. This claim highlights the device's potential to revolutionize the way users approach resin 3D printing. By combining multiple functions into one machine, the S10 offers a more efficient and user-friendly experience, particularly for those who may not have the space or resources for multiple devices.

The S10 features a 16K monochrome LCD with a resolution of 15,360 × 6,540 pixels and a build volume of 223.03 × 125.9 × 200 mm. This allows for printing multiple miniatures or small prototypes in a single batch. The high-resolution display ensures that details are captured accurately, making it ideal for users who require precision in their prints. The large build volume also provides flexibility, enabling users to work on a variety of projects without the need for frequent repositioning.

The device includes a C5-class ball screw for precise Z-axis movement, with a stated repeatability of ±0.005 mm. An assisted release-film system helps reduce layer-separation forces, improving print quality and reliability. These technical specifications highlight the S10's commitment to accuracy and performance. The precision of the Z-axis movement ensures that each layer is printed with consistency, while the release-film system minimizes the risk of print failures due to layer adhesion issues.

Technical Specifications and Design

The S10 has an enclosed chamber and internal air purification to reduce odors during operation. It also includes automatic resin feeding and heating, minimizing the need for manual material management. These features contribute to a safer and more convenient user experience. The enclosed chamber helps contain fumes and odors, making the device suitable for use in environments where air quality is a concern. The automatic resin feeding system ensures that the printer is always ready to operate without constant user intervention.

UniFormation is developing a software platform called UniGali to support the S10. This may offer additional control over print settings and workflow automation. The development of this software indicates the company's focus on creating a comprehensive ecosystem around the S10. By integrating software solutions, UniFormation aims to enhance the user experience and provide more flexibility in how users interact with the device.

The S10 has a modular design, allowing for independent repair of printing, washing, and drying modules. This could reduce downtime and maintenance costs for users. The modular approach ensures that if one component fails, it can be replaced without affecting the entire system. This design philosophy not only improves reliability but also makes the device more cost-effective in the long run, as users can repair or upgrade individual modules as needed.

Potential Impact on Small Workshops

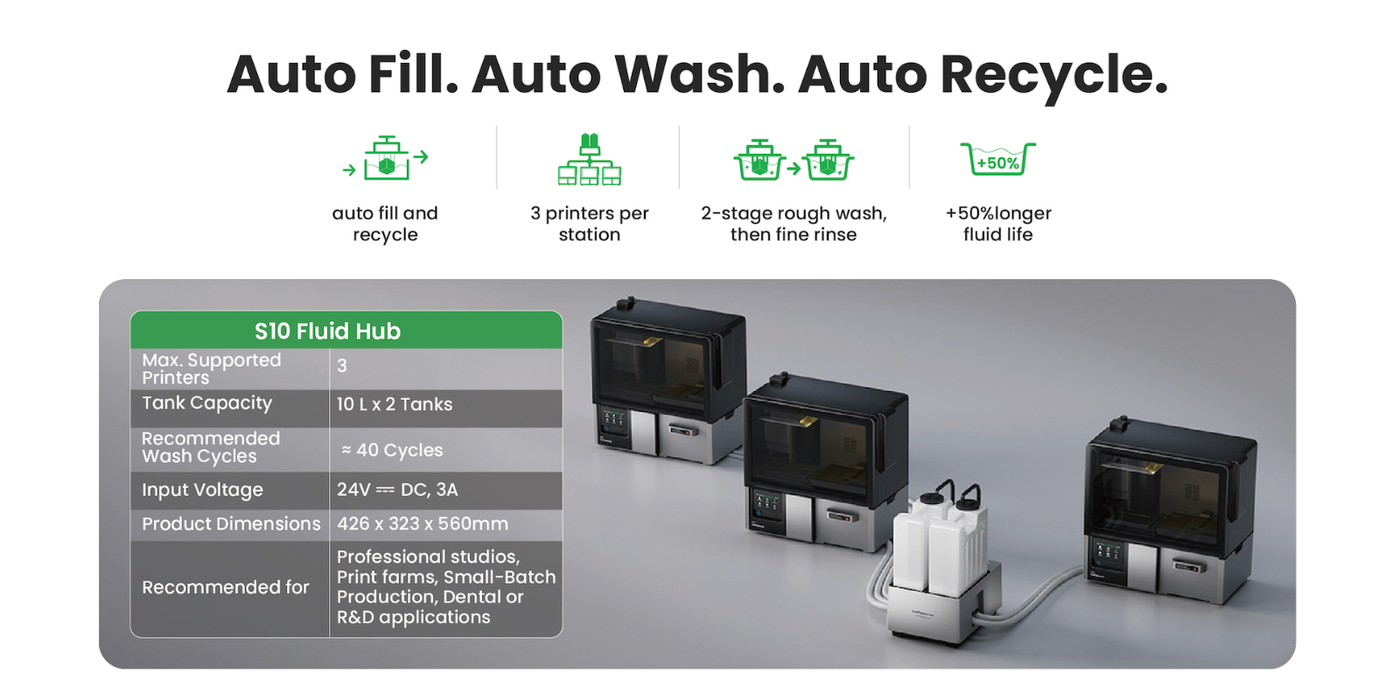

For print farms and studios, the S10 can be paired with a Fluid Hub, enabling shared cleaning solutions among multiple units. This may help reduce waste and improve efficiency in high-volume environments. The Fluid Hub allows for a more sustainable approach to post-processing by reusing cleaning solutions and minimizing the need for frequent replacements. This feature is particularly valuable for businesses that require consistent and efficient production.

The S10 includes a three-sided drying system using PTC ceramic heating, which provides gentle drying at 35–45°C. This avoids direct exposure to hot elements, improving safety and reducing the risk of damage. The three-sided design ensures that models are dried evenly, preventing warping or distortion. This feature is especially important for users who work with delicate or complex models that require careful handling.

UniFormation plans to offer adjustable settings for draining, washing, and drying, allowing users to customize the process based on model complexity. This flexibility could benefit users with varying project requirements. By providing customizable settings, the S10 caters to a wide range of applications, from simple prototypes to intricate designs. This adaptability ensures that the device can meet the needs of both hobbyists and professionals.
